AUTOPHIX VAG007 is a super scanner for detecting the Volkswagen Series and OBD II vehicles. VAG007 is a good assistant for car owners could test all VW, AUDI, SKODA and SEAT series vehicles. VAG007 supports the KWP TP-CAN and New UDS protocols all OBD II protocols, It's small light handy and versatile gets data quickly.

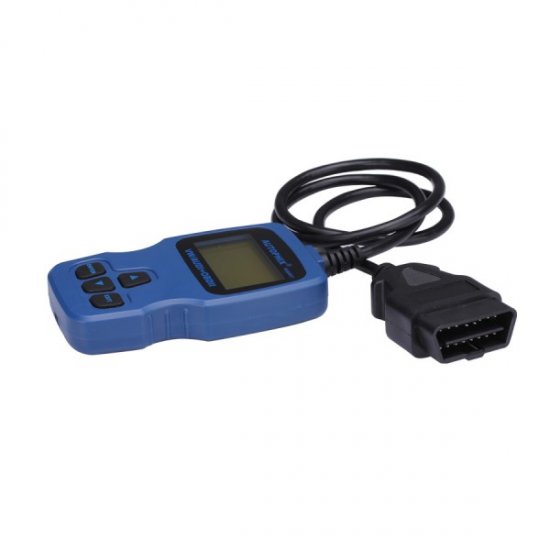

AUTOPHIX VAG007 OBDII Scan Tool Vag 007 for VW/AUDI



1. Delicate and Portable
2. Automatic Scanner System,easy to operate
3. Multilingual Menu: English, German
4. Economical and practical
5. Oil Reset for VW/AUDI
6. Fast diagnosis and get data quickly


VAG 007 VW/AUDI OBDII Scan Tool Compatible Vehicles:


VW/ AUDI/ SEAT/ Skoda/ Jetta/ Bora/ Santana/ Sagitar/ Magotan/ Golf/ Beetle/ Tiguan/ Touareg/ Passat and so on .


VAG 007 VW/AUDI OBDII Scan Tool Function:


Read fault codes
Erase codes and turn off the malfunction indicator light
Retrieve vehicle information


VW/AUDI

Control unit info.
Read fault codes
Clear fault codes
Oil reset
TP Position check
EPB ReplaceBrakepads


OBD II Function:


Work on all after 1996 OBD II
Compliant US, European and Asian vehicles


VAG 007 VW/AUDI OBDII Scan Tool Feature:


Supports All VW Diagnositc protocols (KWP1281 KWP 2000 TP-CANBUS NEW UDS) and ALL OBD II protocols
(CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP 2000)
The maintenance of volkswagen series vehicles , such as oil reset, TPS function,brake pad reset and so on.
Can turn off the engine , transmission, ABS and airbag warning lights.


Fuctions for Volkswagen Series:


01. MENUCOMM: Engine, Auto_Trans, ABS_Brakes, Auto_HVAC, Cent_Elect, Airbags, Steering_Wheel, Instruments and so on.
02. MENUDRIV: Engnie, DieselPump, AutoTrans, AWD etc.
03. MENUCHAS: ABSBrakes, Susp_Elect, ChassisControl, Airbags, SteeringAssist, TirePressure and so on.
04. MENUCOMF: AutoHVAC, PositionSensing, Steeringwheel, Aux_Heat, LaneChange, CentralConv etc.
05. MENUELEC1: Immobilizer, Instruments, Cent_Elect, Navigation, CANGateway, Towprotection etc.
06. MENUELEC2: DataTransfer, MediaPlayer, CtrlHeadDash, Inform_Electr etc.


VAG 007 VW/AUDI OBDII Scan Tool Specifications:


Display: 2.8" TFT 262K true color320*240 QVGALCD display
Operating Temperature: 0 to 50 C (32 to 140 F )
Storage Temperature:-20 to 70 C (-4 to 158 F )
External Power: 8.0 to 18.0 V power provided via vehicle battery
Dimensions:  120mm (5.21") 70mm (3.38") 22 mm (0.8")
Weight NW: 0.23kg (0.57lb), GW: 0.35kg (0.77lb)


Package Including:


1pc x AUTOPHIX VAG 007 VW/AUDI OBDII Scan Tool
