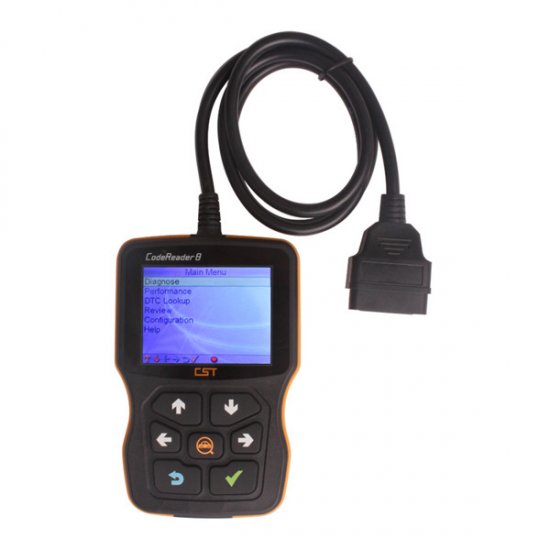

CodeReader8 CST OBDII EOBD Code Read Scanner
1. increases fault repairing function,
2.it's the first one in the world with night vision function.

CodeReader8 CST OBDII EOBD Code Read Scanner


It increases fault repairing function, and it's the first one in the world with night vision function


Features:


A key type diagnostic function.
Read dynamic data flow
Hazards instructions
Ready condition test.
Query Freeze data.
Read the current fault code
Erase the fault code.
Oxygen sensor detection test
Specific monitoring system test ,vehicle monitoring
Read pending fault code
Read the vehicle-mounted system or components of the control.
Read vehicle information.
Read permanent fault code.
Fault code search function.
Test data playback.


Function test:


Vehicle fuel consumption test
Vehicle acceleration test.


Technical parameter :


Screen: 3.2,320*240 colorful LCD screen.
Input voltage range: 9 ~ 18V
Working current: typical value<100mA 12V
Typical consumption:<<1.2W
Wiring Connected way: standard 16pin diagnostic port.
Working temperature: 0 ℃ ~ 50 ℃
Storage temperature:-20 ℃ ~ 70 ℃ @ RH 60%


Package:


1pc *CodeReader8 main unit
1pc *CD
1pc *USB cable
1pc *4 feet OBDII connected cable
