Toyota/Lexus MemoScan T605 fault code reader has powerful functions, which can support all Toyota cars, with smart outlook, competitive price and convenient operation. It is a separately- operated tool without help of PC.

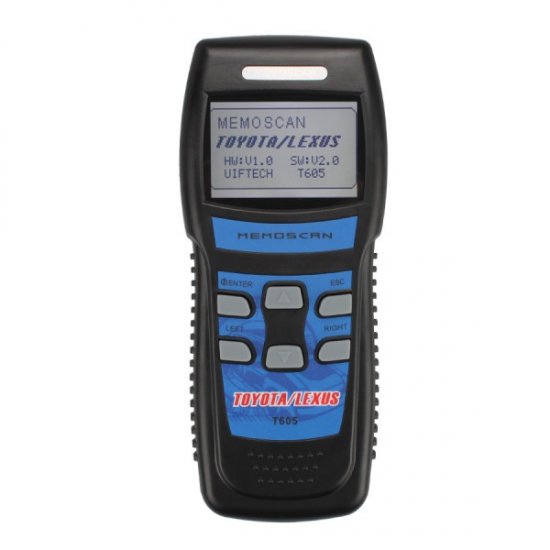

TOYOTA/LEXUS Professional Tool T605

Language:English
Coverage Vehicles: Toyota/Lexus 96-2006+ (Support standard OBD2/JOBD protocol)
System: No Need To Connect With Computer

T605 Function:

1.Read Fault Codes
2.Clear Fault Codes
3.Read Data Stream
4.Active Test

T605 Specification:

1. Systems Supported

T605 can work on the following systems:

Without CANBUS SYSTEM:

1. POWERTRAIN,ENGINE AND ECT,BATTERY,CCS,HV BATTERY,HV ECU,EV,STOP AND GO,SEQUENTIAL MT,LASER CRUISE
2. CHASSIS,ABS,AIRSUS,EMPS|EHPS,FREE-TRONIC,TIRE PRESSURE,VGRS,KDSS,T_M CONTROL
3. BODY,AIR CONDITIONER,SRS AIRBAG,BODY,BACK-DOOR,D-DOOR,P-DOOR,RR-DOOR,RL-DOOR,D-SEAT,P-SEAT,RR-SEAT ,RL-SEAT ,REAR SEAT SW ,GATEWAY ,METER ,MIRROR ,COMBI SW ,ENTRY/START
4. POWER SOURCE CONTROL ,RTRCTBL HARDTOP ,CLEARANCE SONAR ,SLIDE ROOF ,STEERING PAD ,TILT/TELESCO,AFS,MASTER SWRAIN SENSOR
5. IMMOBILIZER

CANBUS SYSTEM

1. POWERTRAIN,ENGINE AND ECT,ECT,MULTI-MODE M/T,CRUISE CONTROL,HV BATTERY,HYBRID CONTROL,LASER CRUISE,RADAR CRUISE,E-ACM
2. CHASSIS,ABS,FOUR WHEEL DRIVE,EMPS,INTELLIGENT PARKING ASSIST
3. BODY,SRS AIRBAG,AIR CONDITIONER,PRE-CRASH,COMBINATION METER,ELECTRIC POWER CONTROL

2. Main Features

1. Competitive price: About 10% cost of that of the professional device with the similar functions
2. With powerful functions: can realize most functions of Intelligent Tester II.
3. On-board power charge
4. Conveniently connection and simply using

3. Appearance

1. LCD Screen:128*64
2. Enter Key:confirm selection and enter
3. Esc Key:go back to the previous screens
4. Up/Down Arrows:moves the selection pointer and scrolls up or down
5. LEFT/RIGHT Arrows:move cursor.
6. Power Button
7. Diagnostic Extension Cable:OBDII -16PIN

Package  List:

1 x T605 Scan Tool
1 x OBDII Cable and Adapter
1 x USB Cable
1 x User Manual
1 x Nylon Carry Case
