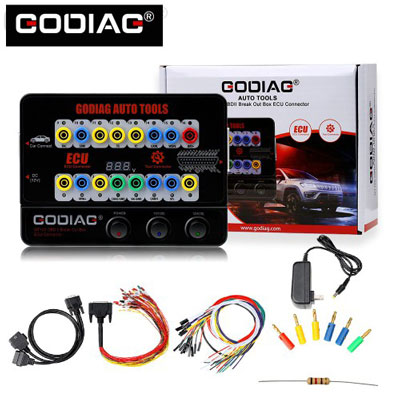

GODIAG GT100 OBD II Break Out Box ECU Connector is Easy work for vehicles OBD II Protocol Detector & Break Out Box. GODIAG GT100 OBD2 Breakout Box with all 16 pins wired. GODIAG GT100 AUTO TOOLS OBDII 16PIN Protocol Detector Breakout Box ECU Connector for OBDII protocol communication detection and ECU maintenance/ diagnosis/ programming/c oding.
GODIAG GT100 OBD II Break Out Box ECU Connector 16PIN Protocol Detector GODIAG GT100 OBD2 Breakout Box
GODIAG GT100 AUTO TOOLS OBDII 16PIN Protocol Detector Breakout Box ECU Connector
GODIAG GT100 OBD2 Breakout Box is used to change the pin settings of other diagnostic tools without the needs to cut the connecting cable for re-wiring. Comes with a quality lead with all 16 pins wired. With a 16 pin female OBD connector, 16 pin male OBD connector and 15 pin D plug to connect to the breakout box.
GODIAG GT100 OBDII 16PIN Protocol Detector Universal Breakout ECU Connector
GODIAG GT100 Highlights
1 year warranty.
Used with KESS V2 and Ktag
ECU connection + OBDII Protocol Detector
The cable can be extended, with Optional dedicated adapter
Compatible with tools from LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG and so on
Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface
Used with BMW-CAS4 Adapter test platform to detect whether the CAS4 key programming work perfectly or not
GODIAG GT100 OBD2 Breakout Box Functions:
1. Tell whether the diagnostic & programming tool can send out communication signal.
godiag gt100 OBDII Protocol Detector & communication detection
After connecting the diagnostic & programming tool to the OBD2 port of GT100, select the car model and function to be performed. Then you will see on GT100 the protocol indicator light will turn on or flash (because the diagnostic & programming tool will send out the communication signal), if the indicator won't turn on, it indicates that the diagnostic & programming tool has a incorrect connection or the machine is damaged.
2. Display the status during communication.
After connecting GT100 to the OBD2 port of the vehicle, turn on the "Power" switch, then you will see the current vehicle battery voltage displayed on the device. Then to connect the diagnostic & programming tool which will communicate with the vehicle and the corresponding protocol indicator light will turn on or flash on the GT100. It is very helpful for the user to determine what protocol the vehicle module.
3.Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool. [Which allow the engineers or technicians to complete the job in the office, also keep away the risk of data loss in other modules when directly testing on the vehicle.]
4.Allow connect multiple car ECU modules. [Which will greatly help the engineers & technicians who need to connect multiple ECUs when programming a module, for example, key programming is supposed to connect multiple ECU modules]
5.When you replace the battery of the vehicle, GT100 will assist in power supply [After the battery is removed, some cars will be malfunction or lose the immobilizer remote data. If the engineers or technicians connect the battery to GT100 then to the OBD2 port of vehicle before replacing the battery, the ECU will be in an electric state.]
6. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.
7. The OBD2 cable of GT100 is as long as 1.2 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. [Which keep away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port]
8.After plugging the banana plug to the colorful jumper cable, connect GT100 to the OBD1 diagnostic port of old car / special car, and meanwhile with the OBD 2-in-1 extension cable connected to the diagnostic & programming tool, the vehicle will be diagnosed or programmed perfectly. Because GT100 will convert the OBD1 port or the special vehicle diagnostic port to the standard OBD2 diagnostic port.
9.GT100 will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.
10.BMW-CAS4 adapter testing platform is used to detect whether the key that is programmed can work perfectly with the CAS4.
Details of Indicator Light
godiag gt100 indicator light
1. Manufactory custom
2. SJE1850 wire
3. Manufactory custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufactory custom 9. Manufactory custom
10. SJE1850 wire《bus->
11. Manufactory custom
12. Manufactory custom
13. Manufactory custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive
GODIAG GT100 OBD Breakout Box Specifications:
| Diagnostic interface |
OBDII |
| Working voltage |
DC 9V-24V |
| Product power |
0.5-0.6W |
| Adapter power input |
AC100v-240v output DC12V 1A |
| Operating temperature range |
-20 to 70 °C (-4 to 158 °F) |
| Storage temperature range |
-40 to 85 °C (-40 to 185 °F) |
| Product packaging size |
23*18*7 (cm) |
