OBDSTAR X300 DP Plus (X300 PAD2) Key Programmer C Package Full Version
This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
X300 DP Plus C Package:
Immobilizer+Mileage correction+Diagnosis+Special function (Oil reset +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag reset+TPMS+Steering angle reset+OBDII+DPF+Injector code+Suspension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester).
Diagnostic Function:
1. Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCS, Clear DTCS, Read data stream, Special functions etc.
2. Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Cluster calibrate, ECU programming, steering angle reset.
3. Specially designed for Android platform with clear and user-friendly interface;
Hardware Advantages:
1. Built-in VCI box, communication more stable
2. 8-inch touchscreen, more intuitionistic
3. Can be charged directly via OBD interface
4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design:Can prop on the steering wheel or stand on the table, easier to operate
7. With 4 Toyota simulation keys (the fifth is coming soon)
8. 3 in 1, P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter
9. Add the clip of reading SOP 8PIN EEPROM
10. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
Software Advantages:
I ECU Clone
1. ECU Clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!
3. Three features for ECU Clone:
A. Free of 4S online:
break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU
II: Switch activation function
(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)
III: Add “Help” functions
including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
IV: Carlist: can directly get on the device
V: Upgrade Announcement: all details are available on the device
VI: Customers can look up the features or uniquely support functions on the device
VII: Help notes: built-in help notes for each model or function
VIII: Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient
How to use OBDSTAR X300 DP Plus Induction Coil?
I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.
II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.
X300 DP PLUS TECHNICAL PARAMETER
● Operation system: Android 5.1.1
● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity:1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: supported
● Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
● Weight: about 1.0 Kg
● Dimension: 254mm*174*mm*35mm
OBDSTAR X300 DP Plus Software Update Instruction:
Tap "One Key Upgrade" to enter one key upgrade page, as following picture shown:
Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:
OTHER CONFIGURATIONS:
A Package:
Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)
B Package:
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)
Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:
| Functions |
Regional market |
Software Configuration |
X300 DP plus |
Remark |
| |
|
|
A package |
B package |
C package |
|
| Immobilizer / Remote programming |
European cars |
VW/Audi/Skoda/Seat (Standard) |
√ |
√ |
√ |
|
| VW/Audi/Skoda/Seat (Advanced) |
√ |
√ |
√ |
add NEC 24C64 2014-key programming. |
| BMW (Standard) |
|
|
|
|
| BMW (Advanced) |
√ |
√ |
√ |
Add FEM/BDC key programming, ISN code reading etc. |
| Volvo |
√ |
√ |
√ |
|
| The other European cars |
√ |
√ |
√ |
|
| Asian cars |
Hyundai /Kia (Standard) |
|
|
|
|
| Hyundai /Kia (Advanced) |
√ |
√ |
√ |
Add 47/8A/46 smart key pin code reading |
| Toyota /Lexus (Standard) |
|
|
|
|
| Toyota /Lexus (Advanced) |
√ |
√ |
√ |
For Middle east cars, it adds H chip all keys lost (Immo box reset) |
| The Asian cars |
√ |
√ |
√ |
|
| North American cars |
Ford(Standard) |
|
|
|
|
| Ford (Advanced) |
√ |
√ |
√ |
Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc. |
| GM(Standard) |
|
|
|
|
| GM(Advanced) |
√ |
√ |
√ |
|
| The other American & Chinese cars |
√ |
√ |
√ |
Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc. |
| Cluster Calibration |
|
All cars cluster calibration |
|
√ |
√ |
|
| |
|
4-system diagnosis |
|
|
|
Engine, Transmission, ABS, airbag reset |
| OBDII Diagnosis |
|
Full functions diagnosis |
|
|
√ |
Full-system all-cars diagnosis |
| Special function |
|
Oil service reset |
|
|
√ |
Reset the Oil Service Light on |
| |
Manual remote setting |
|
|
|
Some cars only supports manual remote setting. |
| |
ABS bleeding |
|
|
√ |
After replace the ABS pump and related components. |
| |
Battery matching |
|
|
√ |
After the battery is changed, you need to match the battery. |
| |
ECU programming |
|
|
√ |
|
| |
The car with EPB replace brake pads |
|
|
√ |
Electronic Parking Brake release |
| |
Throttle programming |
|
|
√ |
Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed. |
| |
Airbag reset |
|
|
√ |
Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused |
| |
TPMS reset |
|
|
√ |
Used for reset after tire pressure alarm |
| |
Steering angle reset |
|
|
√ |
Replacement of data lost after steering angle change or power off |
| |
OBDII Engine |
|
|
√ |
Used to diagnose the car with OBD protocol. |
| |
DPF Regeneration |
|
|
√ |
Diesel Particulate Filter Operational |
| |
Injector coding |
|
|
√ |
Used to match and code the injector after replacement |
| |
Suspension match |
|
|
√ |
Used to match and set the suspension after adjusting. |
| |
Gear learning |
|
|
√ |
Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function) |
| |
CVT learning |
|
|
√ |
Used to reset the learning value after maintenance of CVT transmission |
| |
EEPROM |
|
|
√ |
Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft |
| |
Key Renew |
|
|
√ |
Renew the used keys to solve the problem that used keys cannot be matched to other models |
| |
Steering angle repair |
|
|
√ |
Used for the repair of lost data of vehicle steering angle sensor |
| |
ECU Clone |
|
|
√ |
Used for copying the program when replacing the new/second-hand computer. |
| |
Switch activation |
|
|
√ |
|
| Hardware |
|
P001 Programmer unit |
√ |
√ |
√ |
|
| |
C001 circuit board |
√ |
√ |
√ |
|
| |
C002 circuit board |
√ |
√ |
√ |
|
| |
W001 data cable |
√ |
√ |
√ |
|
| |
W002 data cable |
√ |
√ |
√ |
|
| |
W003 data cable |
√ |
√ |
√ |
|
| |
Toyota smart key emulators |
√ |
√ |
√ |
|
| |
Remote Tester |
√ |
√ |
√ |
|
| |
Anti-theft Induction coil |
√ |
√ |
√ |
Used to test if the coil can send out the transmit signal. |
OBDSTAR X300 DP PLUS vs. OBDSTAR X300 DP
| S/N |
Features & Functions |
Obdstar X300 DP Plus |
Obdstar X300 DP |
| |
|
| |
Hardware & Design |
|
|
| 1 |
Screen size and industrial design |
Better |
Good |
| 2 |
Back holder |
√ |
× |
| 3 |
Work separately without VCI |
√ |
× |
| 4 |
Charged by OBDII |
√ |
× |
| 5 |
4 Toyota emulators |
√ |
× |
| 6 |
P001 programmer |
√ |
× |
| 7 |
Wiring harness for new functions, such as ECU cloning and switch activation |
√ |
× |
| |
Software/Update |
|
|
| 1 |
Immobilizer |
√ |
√ |
| 2 |
Mileage |
√ |
√ |
| 3 |
EEPROM |
√ |
√ |
| 4 |
ECU Clone |
√ |
× |
| 5 |
Switch activation function |
√ |
× |
| 6 |
"Help" function - covers built-in support car list,
upgrade announcement,
help notes and wiring diagrams |
√ |
× |
| 7 |
No need pay for software update for FREE during the valid time (one year) |
√ |
× |

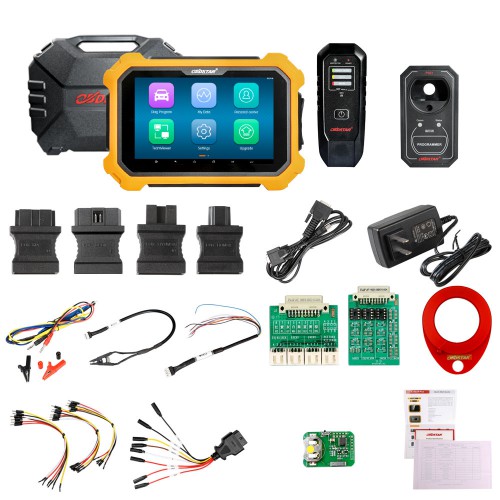

Packing List
Key Master DP Plus Unit
Main Wire
12V2A DC Charger
KIA-20
OBD II-16 Connector
HAIMA-17
HONDA-3
HYUNDAI/KIA-10
IMMO Induction Coil
Muti-functional Jumper
P001 Programmer Unit
C001/C002 Circuit Board
W001
W002
W003
RT100
TOYOTA Simulation Smart Keys
Configuration List/Certificate/Quick Start Guide Fold
