The XHORSE XDMQBAGL MQB Adapter is a fantastic tool for automotive locksmiths and technicians working with MQB48 systems. It simplifies the key programming process by eliminating the need for disassembling the instrument cluster, which not only saves time but also reduces the risk of damaging vehicle components. With minimal soldering, low risk, and easy operation, this adapter is a must-have for professionals who need to add keys to modern MQB vehicles efficiently and safely.

XHORSE XDMQBAGL MQB Adapter: Simplifying Key Programming for MQB48 Systems

The XHORSE XDMQBAGL MQB Adapter is the latest innovation for automotive locksmiths and technicians dealing with MQB48 key systems. This tool eliminates the need to disassemble the instrument cluster, simplifying key programming and key addition. With XHORSE MLB equipment, you can easily add keys to MQB48 systems with minimal effort and low risk.

In this post, we will dive into the features, usage, and advantages of the XHORSE XDMQBAGL MQB Adapter, providing a comprehensive guide to its operation.

Key Features of the XHORSE XDMQBAGL MQB Adapter

1. Supports Most MQB48 Keys:

   • The XHORSE XDMQBAGL MQB Adapter is designed to support most MQB48 keys, which are commonly found in modern VW, Audi, and other VAG vehicles using the MQB platform.

2. No Need to Disassemble the Instrument:

   • One of the standout features of this adapter is its simple operation. Unlike other methods that require you to disassemble the instrument cluster, the XHORSE XDMQBAGL MQB Adapter only requires you to remove the key and solder two wires, making the process quicker and safer.

3. Low-Risk, Simple Operation:

   • With minimal wiring and the absence of complex disassembly, the XHORSE MQB Adapter reduces the risk of damage to the vehicle’s internal components, making it an efficient and user-friendly tool for key programming.

4. Works Seamlessly with MLB Equipment:

   • The adapter is designed to work seamlessly with MLB equipment, ensuring smooth and efficient key addition and key generation processes.

How the XHORSE XDMQBAGL MQB Adapter Works

The XHORSE XDMQBAGL MQB Adapter is designed to work with two primary devices: VVDI2 and Key Tool Plus/Key Tool Midi. Here’s how it works with each device:

1. Using with VVDI2 Device:

• Step 1: Connect the MLB device and MQB adapter to read the IMMO data from the MQB48 key.

• Step 2: Use VVDI2 to load the IMMO data that was read in Step 1. This step will allow you to generate a new key and learn it to the vehicle.

• Important Note: Make sure that the MQB function is enabled in VVDI2 and MQB48 NEC35XX locking function is not needed for this process.

2. Using with Key Tool Plus/Key Tool Midi Device:

• Step 1: Directly connect the MLB device and MQB adapter to the tablet device (Key Tool Plus or Key Tool Midi) to read the IMMO data from the MQB48 key.

• Step 2: Load the IMMO data into the tablet device, allowing you to generate and learn the key.

• Important Note: The tablet device needs to have fourth-generation authorization, and like the VVDI2, the MQB48 NEC35XX locking function is not required.

Wiring & Connection Guide

To successfully use the XHORSE XDMQBAGL MQB Adapter, follow these key wiring steps:

1. Capacitor Removal:

   • Before connecting the wiring, you must remove one capacitor (near the IC position) on the original key. This step is crucial for ensuring the adapter works correctly with the MQB48 key.

2. Soldering the Wires:

   • After removing the capacitor, follow the wiring diagram provided with the adapter. Solder the socket cables to the original key according to the color specifications in the diagram.

   • Important: Be sure to double-check the wiring to avoid any mistakes during the process. Proper soldering ensures the tool’s reliability and reduces the risk of failure.

Why Use the XHORSE XDMQBAGL MQB Adapter?

• No Disassembly Required: Traditional methods for adding MQB keys often involve removing the instrument cluster, which can be risky and time-consuming. The XHORSE adapter eliminates this step.

• Simplicity and Safety: With just two wires to solder, the risk of damaging vehicle components is minimized, making it a safer alternative to other complex methods.

• Efficient Key Programming: The XHORSE adapter provides a fast and effective solution for key programming, allowing you to quickly generate and learn keys, even for MQB48 systems.

• Cost-Effective: By eliminating the need for disassembly and complex procedures, this tool can save you time and reduce the costs associated with key programming.

Warm Notice

It is strongly recommended that customers use a computer for collecting data rather than relying on a tablet. Using a computer will provide more stability and reliability during the key programming process.

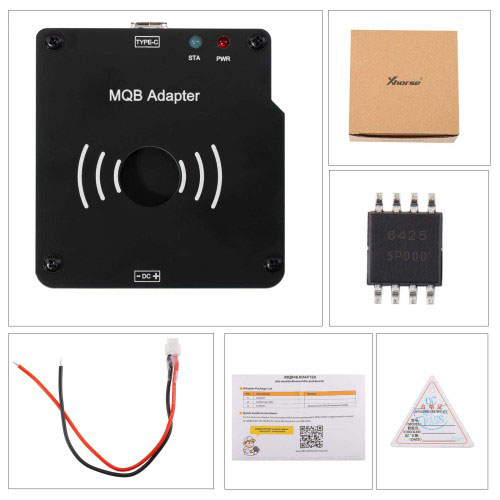

Package Contents

The XHORSE XDMQBAGL MQB Adapter package includes:

• 1 x XHORSE XDMQBAGL MQB Adapter

By using the XHORSE MQB Adapter alongside devices like VVDI2 and Key Tool Plus/Key Tool Midi, you can provide high-quality key programming services to your clients with ease.
