dynamoelectric Send Tin Gun for Soldering Iron, DW-80A / DN-80A / DN-P80 Thermostat soldering iron with soldering tin feeding kit, 200~450 Degree Temperature Adjustable Hand Automatic Send Tin Electric Heating Weld Pencil Soldering Iron Gun.

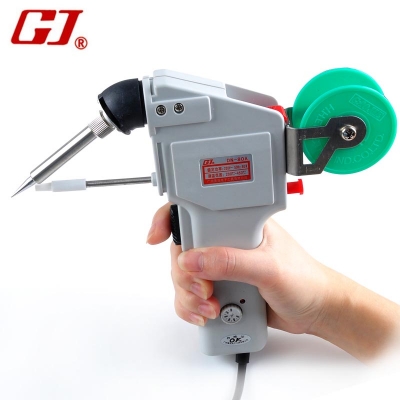

DW-80A DN-80A DN-P80 Send Tin Gun 80W Soldering Iron Gun

Soldering Iron Gun :

Optional 1: DW-80A External heat
Optional 2: DN-80A  Inherent heat
Optional 3: DN-P80  Inherent heat  New design

DW-80A DN-80A DN-P80  Feature:

  Power supply voltage: 220V 50Hz
  Max Power: 80W
  Temperature range: 200-450
  Meet the impressible temperature requirement
  Lead-Free welding tip
  Microcomputer intelligence temperature controller
  With constant temperature controller,  ±30℃
  ceramics heat core

Use information:

1. Hand gun used for the first time, be warm a few minutes, a smoke is a normal phenomenon, will disappear in a few seconds.

2. Will be rated into the tin from the tin line into the mouth, and then pull the trigger direction of the arrow until the tin lead solder wire to the nozzle only to be working.

3. Stop the use or replacement of tin wire to be out, as long as the direction of the board-up drive, and remove the tin wire.

4. Heater replacement, the first protective cover removed, open the heater connection, and then remove the iron Tsui to the core of the heat can be replaced.
